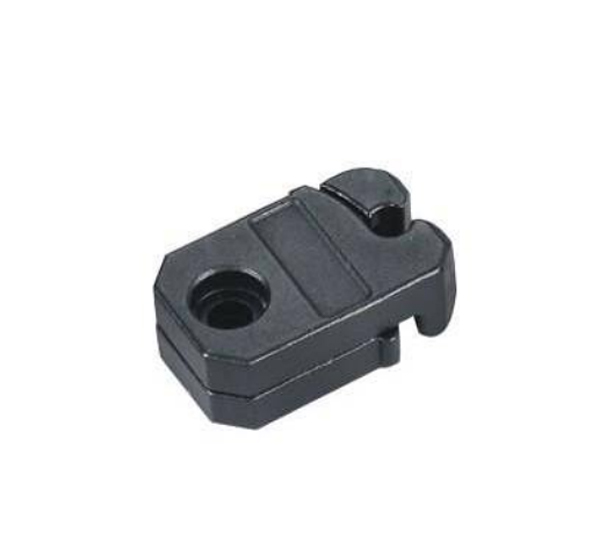

Slide retainers
JHN21
| Material | Hardness |
| 8620 steel | HRC58°~62° |
Inch

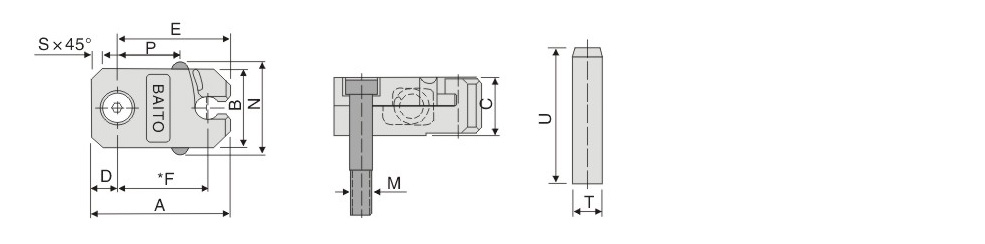

| Type | Dimension | load | |||||||||||
| A | B | C | D | E | *F | N | P | S | T | U | M | Kgf | |
| JHN21-01 | 1.5 | .76 | .63 | .27 | 1.23 | .980 | .94 | .61 | .14 | .25 | 1.25 | .249 | 10 |
| JHN21-02 | 2.13 | 1.26 | .79 | .44 | 1.69 | 1.375 | 1.44 | .88 | .25 | .312 | 1.5 | .3115 | 20 |
| JHN21-03 | 3.38 | 1.76 | 1.18 | .75 | 2.63 | 2.125 | 1.94 | 1.57 | .38 | .375 | 2.25 | .374 | 40 |
Simple and economical, firmly and durable. Can use one or more clamps to bear more load.
