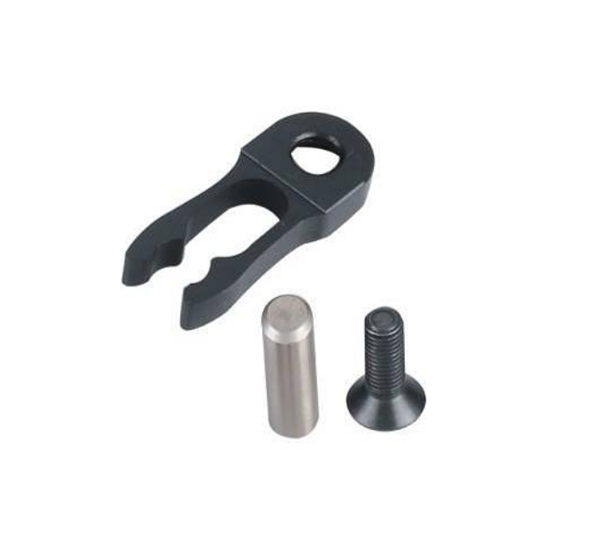

Slide Retainers
JHN24
| Material | Hardness |
| 1.8159 | HRC45°±3° |
Simple but utility, just need small space to install and fix.

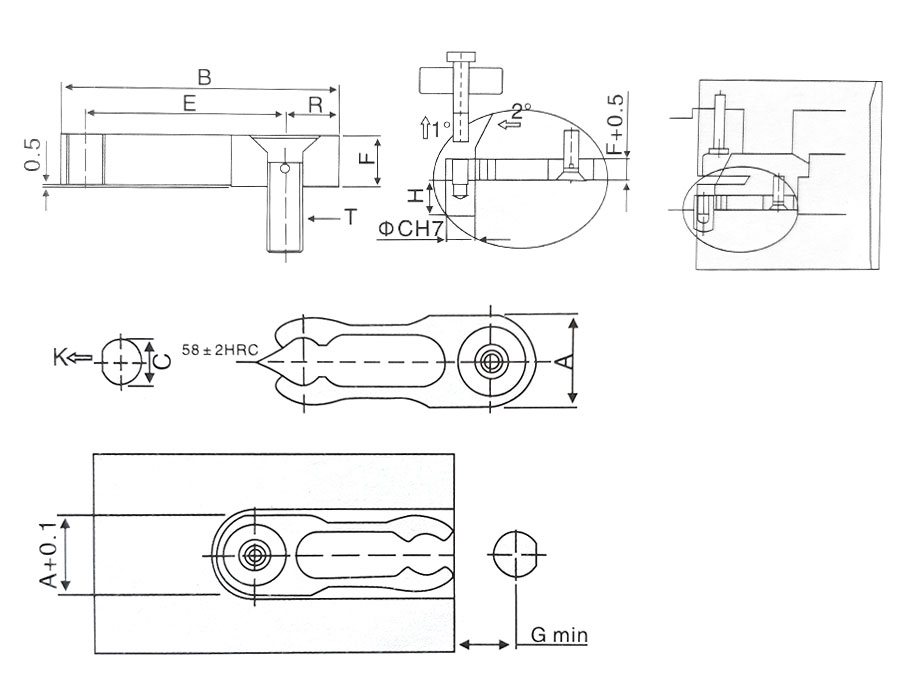

| Type | Dimension | load | ||||||||
| A | B | C | E | F | G | H | R | J | Kgf | |
| JHN24.123006 | 12 | 30 | 6x20 | 21 | 5 | 4 | 16 | 6 | M5x16 | 5 |
| JHN24.164008 | 16 | 40 | 8x20 | 28 | 6 | 5 | 15 | 8 | M6x25 | 7 |
| JHN24.205010 | 20 | 50 | 10x 24 | 34 | 8 | 6 | 17 | 10 | M8x30 | 14 |
| JHN24.246012 | 24 | 60 | 12x32 | 42 | 10 | 7 | 23 | 12 | M10x40 | 21 |
| JHN24.328012 | 32 | 80 | 16x 40 | 56 | 12 | 9 | 27 | 16 | M12x50 | 28 |
| JHN24.328016 | 16 | 25 | 38 | |||||||
Stardard locating clamps are very useful to postpone the open and close of the mold. It can increase the locating clamp's load by add clamps.
