Positioning Components-Slide Block Sets
JHN16
Material | Whole Hardness | Surface Hardness |
A-2 | HRC50°~56° | |
H-13 | HRC50°~56° | HRC80° |
Contact Us
Material | Whole Hardness | Surface Hardness |
A-2 | HRC50°~56° | |
H-13 | HRC50°~56° | HRC80° |
Contact Us

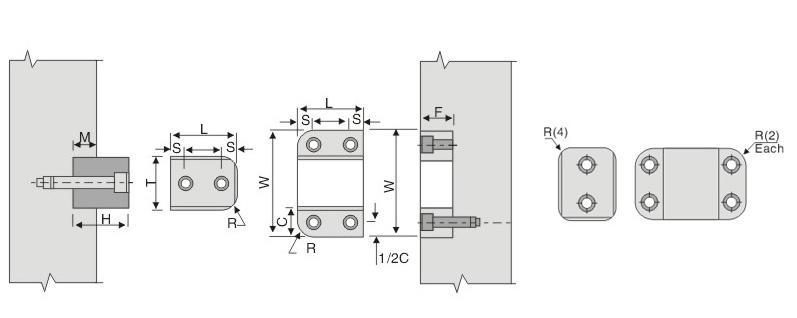

Type | Dimention | |||||||||
W | L +.000 +.010 |
C +.0000 +.0003 |
F +.000 +.005 |
T +0000 +.0003 |
M | H +.00 +.01 |
S ±.01 |
R | internal hexagon screw S.H.C.S |
|
JHN16-100 x 150 | 1.500 | 1.000 | .500 | .500 | .500 | .375 | .85 | .25 | .187 | M:#10-32x1" F:#10-32x5/8" |
JHN16-100 x 250 | 2.500 | 1.500 | .750 | .750 | 1.000 | .625 | 1.35 | .31 | . 250 | M:1/4-20x1-1/2" F:1/4-20x7/8" |
JHN16-200 x 350 | 3.500 | 2.000 | 1.000 | 1.000 | 1.500 | .750 | 1.73 | . 44 | .375 | M:3/8-16x2" F:3/8-16x1-1/4" |
JHN16-250 x 450 | 4.500 | 2.500 | 1.250 | 1.250 | 2.000 | .875 | 2.10 | .56 | .500 | M:1/2-13x2-1/4" F:1/2- 13x2-1/4" |
