Positioning Components-Locking Block Sets

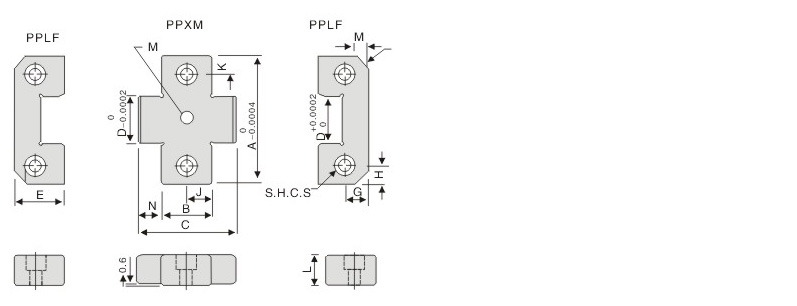

PPLF-PPXM

Material	Hardness
8620/Brass	HRC50°~56°

PDF Download:

View pdf All catalogues

Contact Us

product details

Type		Dimension
		A	B	C	D	E	Internal Hexagon Screw S.H.C.S	G	H	J	K	L	M	N	U
FEMAL E	X-STYLE
PPLF-0001	PPXM-1001	1.5000	.850	1.470	.5000	.870	1/4-20x3/4	.281	.281	.425	.281	.620	.19	.310	.2500
(2REQ'D.)	PPXM- -2001		1.350	1.970						.675
PPLF-0002	PPXM-1002	2.0000	.850	1.470	.6800	.870	1/4- 20x3/4	.375	.375	.425	.375	.620	.19	.310	.2500
(2REQ'D.)	PPXM- -2002		1.350	1.970						.675
PPLF-0003	PPXM-1003	3.0000	.850	1.950	1.0000	1.370	3/8-16x1	.668	.375	.425	.375	.745	.19	.550	.3750
(2REQ'D.)	PPXM- 2003		1.350	2.450						.675
PPLF-0004	PPXM- 2004	4.0000	1.350	1.890	1.3750	1.870	3/8-16x1	.875	.625	.675	.625	.745	.50	.770	.3750
(2REQ'D.)	PPXM- -3004		1.850	3.390						.925
PPLF-0005	PPXM- -2005	5.0000	1.350	2.890	1.7500	1.870	1/2x 13x1/4	.875	.750	.675	.750	1.120	.50	.770	.5000
(2REQ'D.)	PPXM- 3005		1.850	3.390						.925
