Oilless Inclined Ejector Core Unit

JH136

PDF Download:
View pdf All catalogues
Contact Us

product details

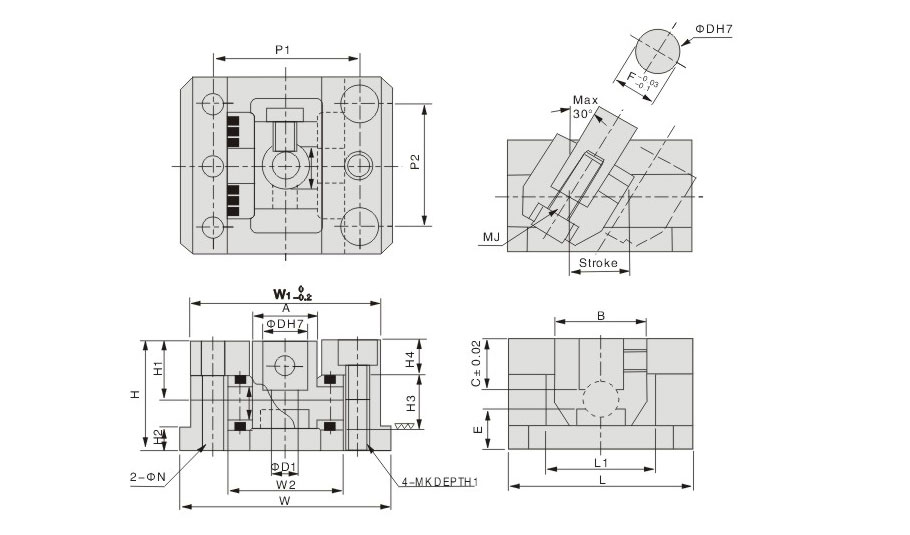

Catalog No. d D1 A B C E F G MJ H H1 H2 H3 H4 H5 L L1 L2 W W1 W2 P1 P2 MK I N ST
Type D
JH136 8 7 4.5 11 20 8 10 7 8 M4 22 12.5 5 11 7 10.5 32 20 3.6 33 30 19 24 20 M3 9.5 3 10
10 7 5.5 15 25 10 12.5 9 9 M5 27 13 5 15 8 11.3 45 25 4.5 45 40 25 32 30 M4 14 4 18
12 10 7 17 25 12 15 11 10 M6 32 18 7 16 10 4 50 30 8 57 51 31 39 35 M6 14 6 20
16 12 9 22 30 16 15 14.5 12 M8 36 20 8 20 10 5 65 40 8 65 58 38 46 40 M6 16 6 25
20 14 11 26 40 20 16 18 16 M10 42 23 11 22 12 8 80 50 8 80 72 44 56 55 M8 19 8 30
25 16 14 32 45 25 17 22.5 20 M12 50 28 15 26 15 8 90 55 12 93 85 52 66 65 M10 22 10 35
30 18 14 38 50 30 17 27 25 M12 55 30 15 30 15 9 100 60 12 101 93 60 74 70 M10 25 10 40
35 20 14 45 60 35 18 32 30 M12 62 35 15 34 18 10 120 75 8 120 110 70 85 80 M12 27 10 45
40 25 18 55 70 40 19 36 35 M16 70 40 15 44 18 12 135 85 8 130 120 80 95 90 M12 30 10 50
45 30 18 60 80 45 24 40 40 M16 80 45 15 50 20 14 150 95 10 140 130 90 105 110 M12 35 10 55

• Order example for first item(Type No.D): JH136-8
