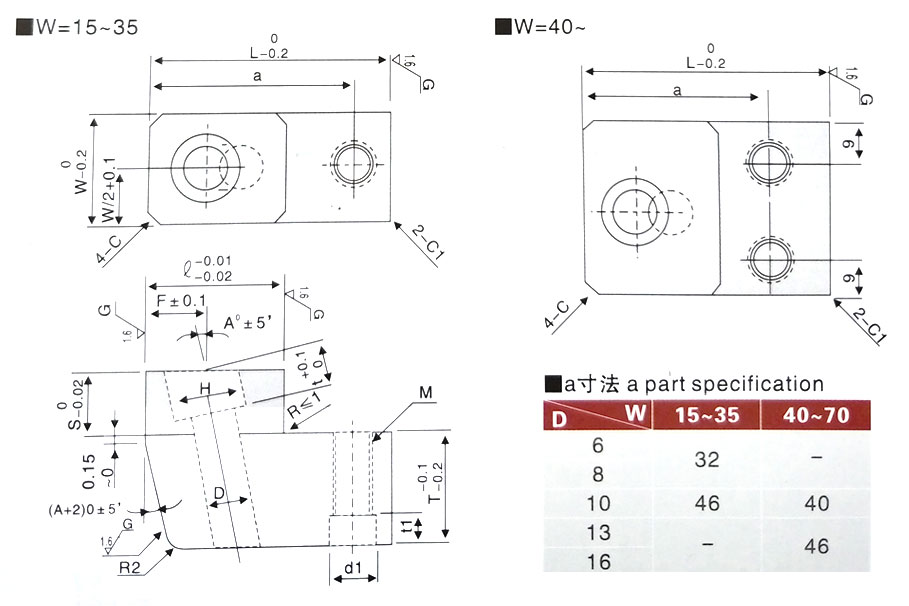

Locking Blocks-With Angular Hole Process
JH056-1
| Type | Material | Hardness | Heat Treatment |
| JH056-1 | SKS3 | 53-56HRC | Vacuumed |
| DH7 | H | t | d1 | t1 | M | L | T | F | l | S | c | Catalog No. | W | A | ||
| Type | D | |||||||||||||||
| 6 | +0.012 0 |
11 | 5 | 11 | 6.5 | 8 | 40 | 10 | 10 | 20 | 10 | 3 | JH056-1 | 6 | 15 20 25 | 10° 15° 18° 20° |
| 8 | +0.015 0 |
13 | 8 | |||||||||||||
| 10 | 16 | 10 | 55 | 25 | 12 | 30 | 15 | 5 | 10 | 25 30 35 | ||||||
| 14 | 8.6 | 10 | 50 | 40 45 | ||||||||||||
| 13 | +0.018 0 |
19 | 55 | 15 | 35 | 13 | 45 50 55 60 65 70 | |||||||||
| 16 | 21 | 13 | 16 | |||||||||||||
●Order:Catalog No.DxWxA
