Characteristics:

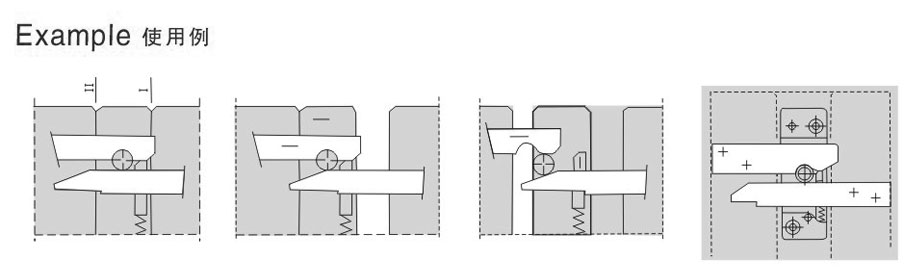

Designed simple, easy to install, the height is adjustable when operating. Test proved that you can choose one from Z170 and Z171.

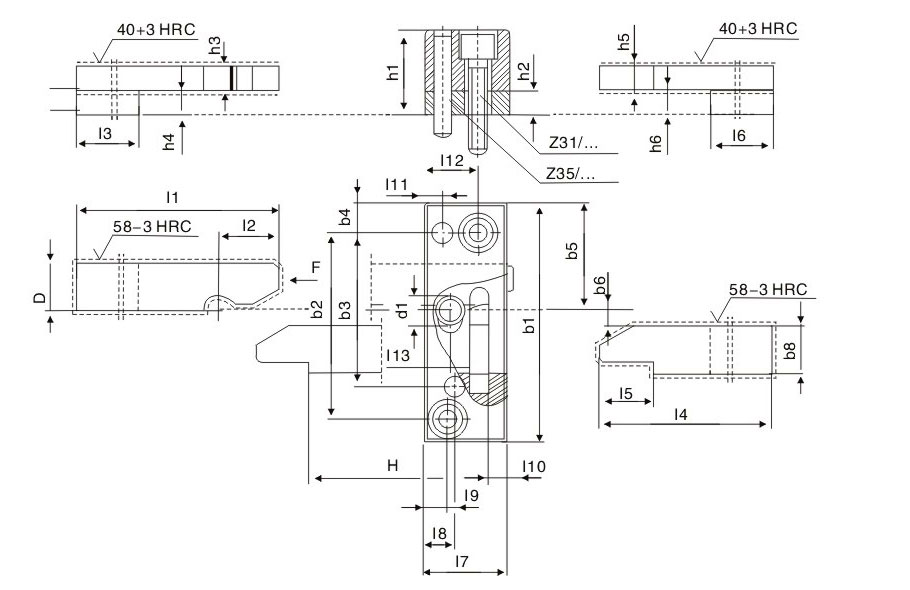

| Type | b1 mm | I7 mm | b4 mm |
I11 mm |
I9 mm | I8 mm | I12 mm | b5 mm | I13 mm | h2 mm | I1 mm | b7 mm | h3 mm | l4 mm |
| Z170/1 | 63 | 22 | 8 | 5 | 6 | 8 | 14 | 28.5 | 7 | 6 | 100 | 12.5 | 6 | 125 |
| Z170/2 | 90 | 34 | 13 | 8 | 8 | 18 | 24 | 45 | 16 | 7.5 | 140 | 20 | 12.5 | 160 |
| Z170/3 | 110 | 42 | 15 | 9 | 9 | 22 | 31 | 55 | 20 | 12 | 200 | 25 | 16 | 250 |
• Order example for first item(Type No.x Pcs): Z170/1 X 10
