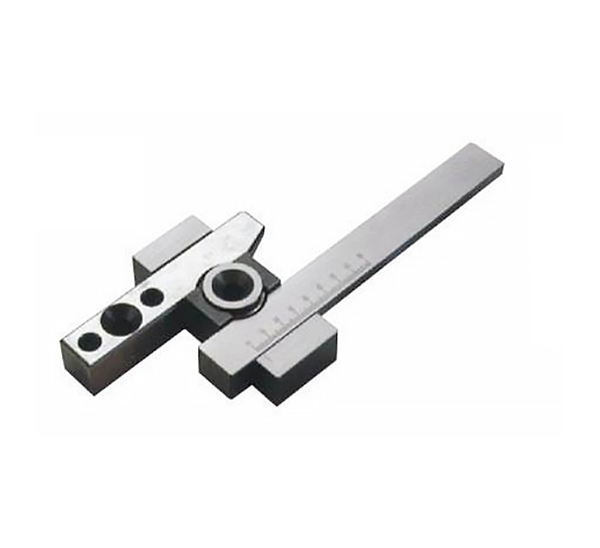

Latch Lock
GGS
| Material | Hardness |
| 1.0503 | 55°±3°HRC |
Characteristics:
More accurate first plate opening compared to other conventional systems.
Scale lever indicates opening of the first plate.
Reduces costs compared to conventional mechanisms.
Note: Fixup the scale bar in cushion plate before choose the length.
| Type | Size | Sca | ||||||||||||||
| A | B | C | D | E | F | G | H | L | M | N | P(×2) | R(×4) | S(×2) | T | ||
| GGS.226616 | 22 | 66 | 16 | 38 | 75 | 30 | 25 | 32 | 105 | 10 | 15 | φ6x20 | φ6x30 | M6x30 | M6x35 | 40 |
| GGS.368619 | 36 | 86 | 19 | 46 | 102 | 43 | 32 | 42.7 | 153 | 12 | 20 | φ8x24 | φ8x36 | M8x36 | M8x40 | 60 |
| GGS.421024 | 42 | 106 | 24 | 56 | 124 | 51 | 40 | 50.2 | 190 | 15 | 24.5 | φ10x30 | φ10x40 | M10x40 | M10x45 | 80 |
Order example for first item (Type No.x Pcs): GGS.226616x10
