Characteristics:
To eliminate the possible break the mold, because it does not require any can be changed to adjust or may be connected to accidentally drop. Applicable to general or heavy die, each mold need at least four locking buckle.

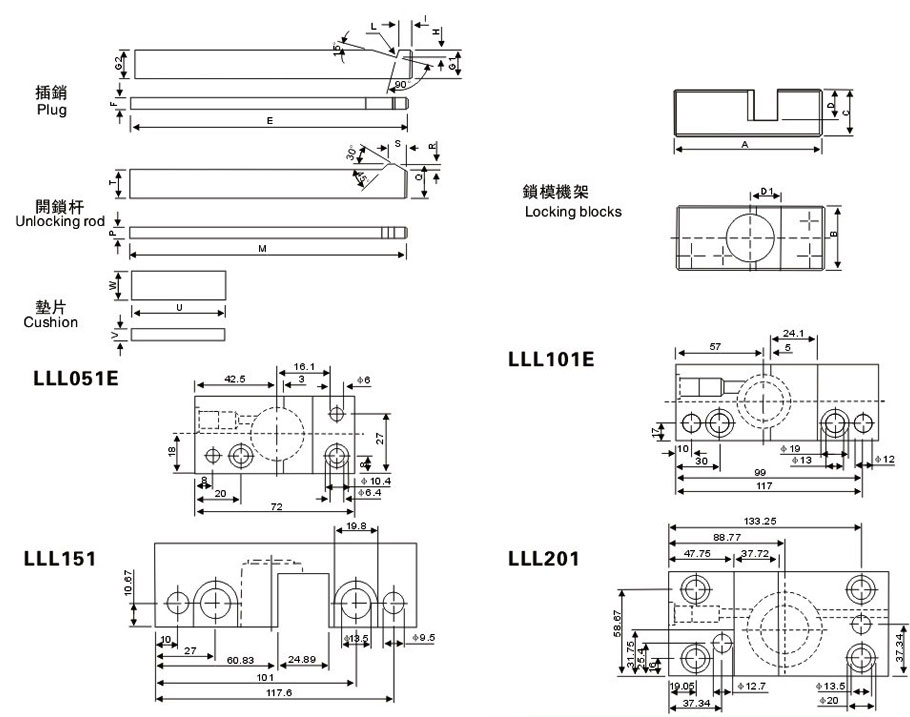

| Type | Size | ||||||||||
| A | B | C | D | E | F | G1 | G2 | H | I | L RAD | |
| LLL 051E | 80 | 35 | 25 | 16.2 | 180 | 7.9 | 16 | 16 | 3.4 | 6 | 1 |
| LLL 101E | 127 | 47 | 37 | 22.2 | 254 | 11.9 | 24 | 24 | 3.5 | 12 | |
| LLL 151 | 49.2 | 36.5 | 12.07 | 24.56 | 24.81 | 2.92 | 12.7 | 0.75 | |||
| LLL 201 | 152.5 | 7 4.6 | 61.9 | 38.1 | 406 | 24.77 | 37.21 | 37.46 | 4.75 | 15.9 | 1 |
| Type | Size | ||||||||
| M | P | Q | R | S | T | U | V | W | |
| LLL 051E | 180 | 7.9 | 16 | 3 | 3.5 | 12.5 | 55 | 8 | 12 |
| LLL 101E | 254 | 9.9 | 24 | 4 | 16 | 20 | 75 | 12 | 20 |
| LLL 151 | 9 | 24.81 | 4.76 | 15.87 | 20.95 | 76.2 | 12.39 | 22.22 | |
| LLL 201 | 406 | 12.07 | 37.46 | 6.98 | 22.22 | 31.87 | 114.3 | 25.27 | 38.1 |
Order: example for first item(Type No. x Pcs):LLL 051E x 10
