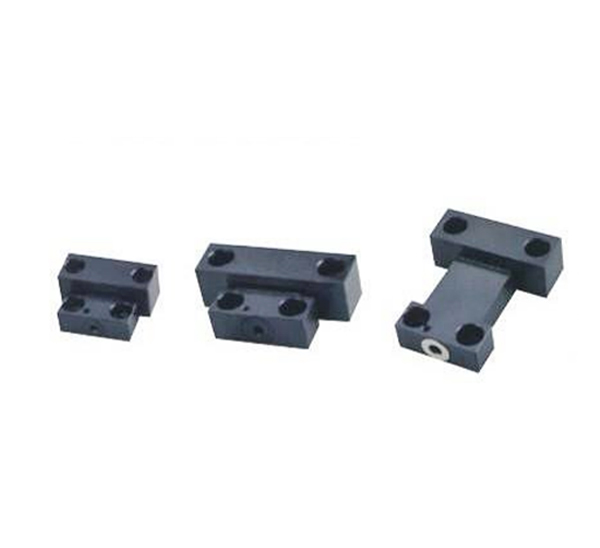

Latch Lock
MPLK/MPLKS
Material | SK3 (set) + S50C (seat) |

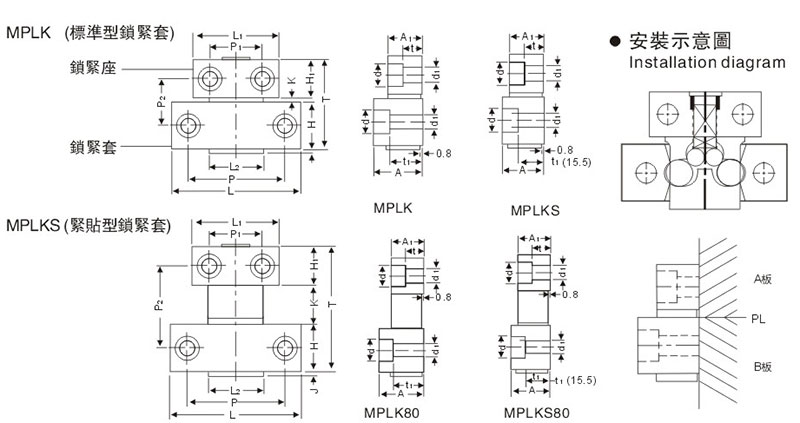

Characteristics:
Disc spring, and a combination of internal roller card wheel, can make the opening and closing of the mould has good balance. Wheel rotation can better prevent eccentric wear occurs. The locking sleeve is symmetric, so if the wear can also be installed to use again. Because the back of the locking seat is avoiding vacancy, can also use so the template has the steps.
Standard type
Type | Size | Pulling force (kgf) 1 set (under ordinary temperature) |
|||||||||||||||||
L | L1 | L2 | T | H | H1 | J | K | P | P1 | P2 | A | A1 | t | t1 | d | d1 | |||
MPLK Standard type |
10 | 48 | 36 | 25 | 42 | 22 | 18 | 2 | 2 | 36 | 24 | 22 | 24 | 16 | 9.5 | 18 | 11 | 6.5 | 50 |
20 | 54 | 42 | 40 | 28 | 9 | 16 | 100 | ||||||||||||
30 | 65 | 46 | 35 | 48.5 | 25 | 20 | 3.5 | 3.5 | 50 | 31 | 26 | 27 | 19 | 9.5 | 17 | 7 | 150 | ||
60 | 73 | 50 | 52 | 33 | 14 | 9 | 300 | ||||||||||||
80S | 56.5 | 11.5 | 34 | 400 | |||||||||||||||
100 | 103 | 65 | 48 | 58 | 30 | 24 | 4 | 4 | 76 | 42 | 31 | 34 | 25 | 13 | 19 | 17 | 11 | 500 | |
MPLKS Close fitting type |
30 | 65 | 46 | 35 | 48.5 | 25 | 20 | 3.5 | 3.5 | 50 | 31 | 26 | 24 | 19 | 9.5 | 15.5 | 11 | 7 | 150 |
60 | 73 | 50 | 52 | 33 | 14 | 9 | 300 | ||||||||||||
80S | 56.5 | 11.5 | 34 | 400 |
Lengthened
Type | Size | Pulling force (kgf) 1 set (under ordinary temperature) |
|||||||||||||||||
L | L1 | L2 | T | H | H1 | J | K | P | P1 | P2 | A | A1 | t | t1 | d | d1 | |||
MPLK | 60 | 73 | 50 | 35 | 87.5 | 25 | 20 | 3.5 | 42.5 | 52 | 33 | 65 | 27 | 19 | 9.5 | 17 | 14 | 9 | 400 |
MPLKS | 100 | 24 | 15.5 |
Order example for first item(Type No. x Pcs): MPLK x 10
