Characteristics:
It is convenient for installing processing machinery interlocking design so that it is safe and reliable. The installation stroke needs to be calculated accurately. Otherwise, the product is likely to be damaged. Select appropriate specification according to load requirement of the die.

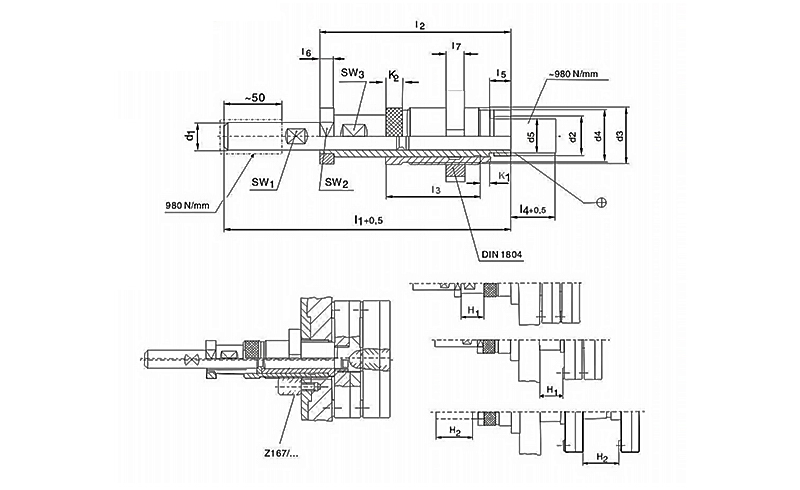

| Type | SW3 | SW2 | SW1 | k2 | k1 | d4 | d5 | I7 | I6 | d7 | I5 | I3 | I2 | I1 | d2 | d3 | H1 | H2 | d1 | ||
| min | max | min | max | ||||||||||||||||||
| Z169/1 6 | 20 | 28 | 13 | 8 | 5 | 30 | 30 | 11 | 9 | 11 | 26 | 56 | 112 | 164 | M22x1 | M32x1.5 | 5 | 30 | 3 | 50 | 16 |
| 22 | 27 | 38 | 17 | 10 | 6 | 40 | 28 | 12 | 16 | 36 | 75 | 148 | 220 | M30x1.5 | M42x1.5 | 6 | 40 | 4 | 70 | 22 | |
| 30 | 38 | 55 | 24 | 7 | 50 | 38 | 13 | 11 | 21 | 45 | 80 | 170 | 255 | M40x1.5 | M60x1.5 | 7 | 50 | 30 | |||
| 40 | 46 | 65 | 32 | 14 | 8 | 65 | 50 | 14 | 12 | 22 | 98 | 200 | 270 | M52x1.5 | M70x1.5 | 7.5 | 60 | 5 | 80 | 40 | |
• Order example for first item(Type NO.- d1x Pcs): Z169-16x10
