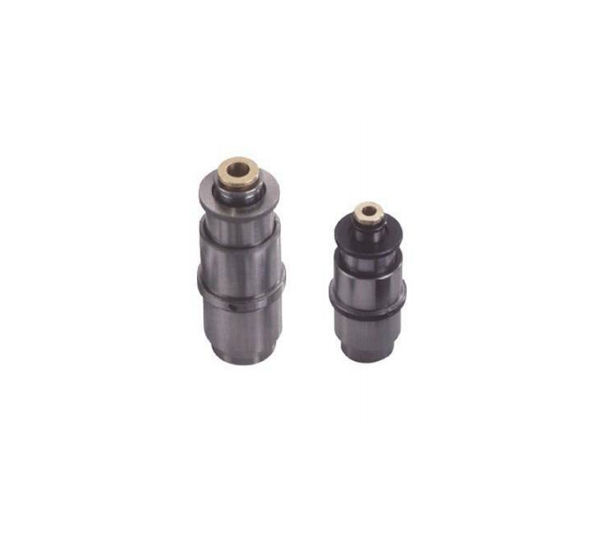

Accelerated Ejector

Characteristics:

• A thimble can be clamped and fixed, which can increase the relative stroke of an additional 8mm or 15mm secondary ejection. Help the plastic parts come off.

• There is a small hole in the head to insert a fixed needle to prevent the thimble from turning.

• Small installation space and cost saving.

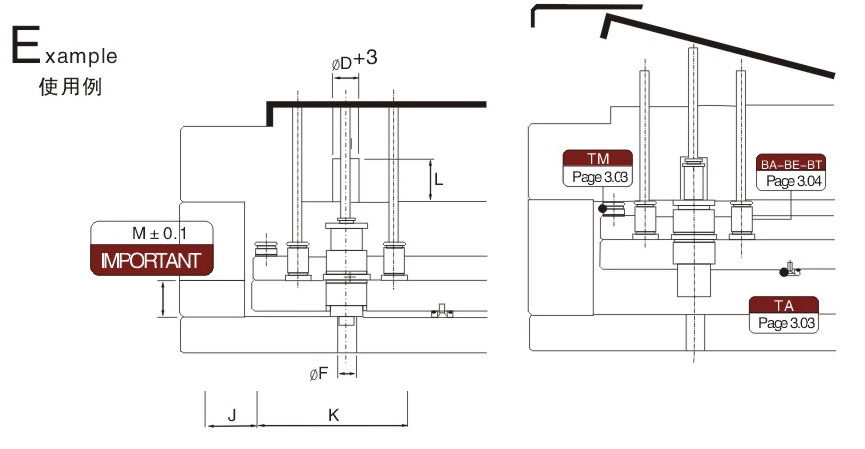

• Only need to do simple vertical hole processing can be easily assembled, optimize the mold structure.

Type	A	B	C	D	E	F	G	J	K	L	M	N	P	Q	R
AE.031620	3	16	20	12.5	22	13	14	8	32	22	17	37	—	4	3
AE.041620	4	16	20	12.5	22	13	14	8	32	22	17	37	—	4	3
AE.052430	5	24	30	16	34	16	20	15	44	36	27	57	2	4	3
AE.062430	6	24	30	16	34	16	20	15	44	36	27	57	2	4	3
AE.082430	8	24	30	17	34	17	20	15	44	36	27	57	2	4	3
AE.103036	10	30	36	21.5	40	21	28	20	62	46	34	78	2	6	4
AE.123036	12	30	36	21.5	40	21	28	20	62	46	34	78	2	6	4
