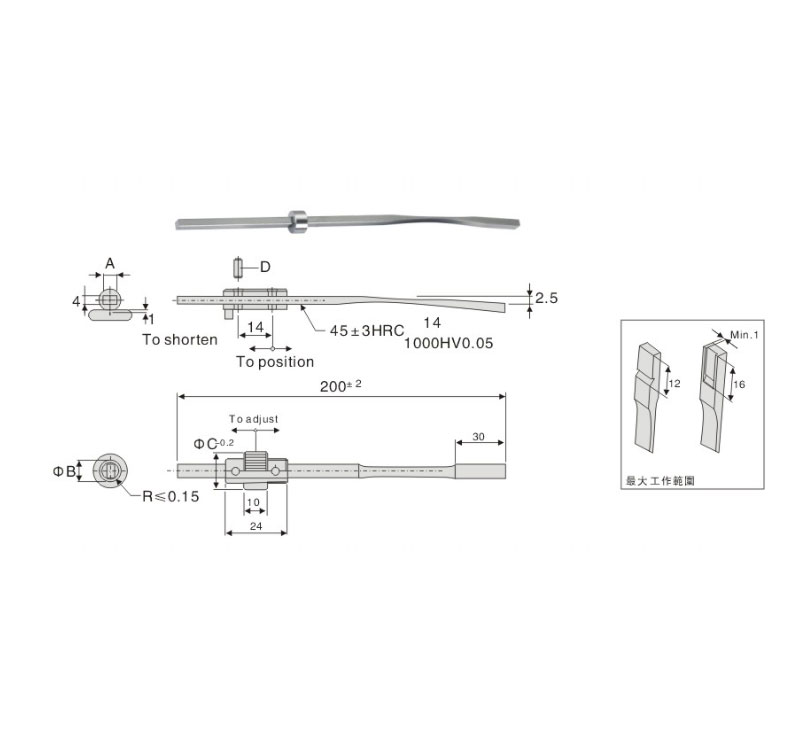

Sling Ejector Pin

JHN02

Material	Hardness
1.8159	HRC45°±3°

PDF Download:

View pdf All catalogues

product details

Type	Dimention
	A	B	D	E	F	LFΦG	P	T	Z
JHN02-1	6	6.2	10	3.5	50	12	13.5	M4x12	3.5
JHN02-2		8.2							6.5
JHN02-3	8	10.2	11.2	4.5	65		14.5	M5x12	7.5
		12.2							9.5
JHN02-4
JHN02-5	10	15.2	13.6	5.5	80	16	15.5	M6x12	12.5
JHN02-6		18.2							15.5

It's made from spring steel, release elasticity at bottom, with guide bushing to prevent the damage from long time's friction between it and mold plate
